COMMUNICATION - Fiber to RS232/422/485

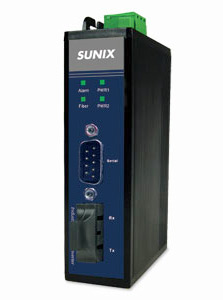

FTC-6011 Series
RS-232/422/485 to Fiber Media Converter

Introduction
SUNIX FTC-6011, a Media Fiber Converter Series, which provides RS-232 to RS-422/485 conversion or serial to fiber Conversion. This multiple interface converter is ideally used for RS-232/422 point to point connections or RS-485 multi-drop applications. The Fiber media extends the serial communication range up to 100 KM with single-mode fiber and bard rate transmitting up to 460.8 Kbps. User can also use FTC-6011 to change the RS-232 interface to RS-422 or RS-485 for increasing data transmission distance up to 1.2 KM by using the differential signal and multi-drop connections. This Fiber media is also the best solution for applications where transmission must be protected from electrical exposure, surges, lighting or chemical corrosion in the industrial environment. Note that the RS-232 and RS-422/485 interfaces can not be used simultaneously converting to optic fiber mode at the same time.

Features:

•	Industrial grade design for stability and reliability
•	Extends serial transmission distance up to 100 KM with Single Mode SC Fiber
•	Embedded ESD surge protection built-in
•	Optical isolation provides protection against damage from static electrical charge
•	Power surge protection provides protection against surge damage from high energy spike
•	Protect against electronic degradation and chemical corrosion
•	Supports baud rate up to 460.8 Kbps with auto baud rate detection
•	12V DC Jack & External power 12~48V DC terminal block with reverse polarity protection
•	RS-232/422/485 Auto Detect and Switch technology enable serial device plug-n-play without jumper or switch setting
•	RS-485 Auto RTS Signal Control (ARSC) technology allows accurate switching of the transmitter on and off for precise timing of the data transmission
•	Detachable wall and din-rail mounting kit design
•	Plug-n-play & compact size designed

Ordering Information

FTC-6011 Series

RS-232/422/485 to Fiber Media Converter
