COMMUNICATION - Fiber to RS232/422/485

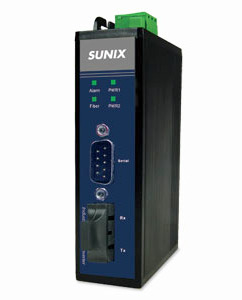

FTD-6011 Series
RS-422/485 to Fiber Media Converter

Introduction
SUNIX FTD-6011 converter provides interface exchange between RS-422/485 to fiber optic and vice-versa. Fiber media can provides stable data communication and also extends communication distance up to 100KM with single mode fiber and 5KM with multi mode fiber. As well, Fiber transmission is immune to electrical and magnetic interference, secure, and reliable.

SUNIX FTD-6011 converter is designed with our unique RS-422/485 Auto Identify and Switch technology and auto baud rate detection, which enable user to switch communication mode or change connected devices without interruption of service. Furthermore, FTD-6011 provides dual power input for redundant power capability to ensure non-stop operation.

Features:

•	Industrial grade design for stability and reliability
•	Extends serial transmission distance up to 100 KM with Single Mode SC Fiber
•	Embedded ESD surge protection built-in
•	Optical isolation provides protection against damage from static electrical charge
•	Power surge protection provides protection against surge damage from high energy spike
•	Protect against electronic degradation and chemical corrosion
•	Supports baud rate up to 460.8 Kbps with auto baud rate detection
•	12V DC Jack & External power 12~48V DC terminal block with reverse polarity protection
•	RS-422/485 Auto Detect and Switch technology enable serial device plug-n-play without jumper or switch setting
•	RS-485 Auto RTS Signal Control (ARSC) technology allows accurate switching of the transmitter on and off for precise timing of the data transmission
•	Detachable wall and din-rail mounting kit design
•	Plug-n-play & compact size designed

Ordering Information

FTD-6011 Series

RS-422/485 to Fiber Media Converter
