COMMUNICATION - Fiber to RS232/422/485

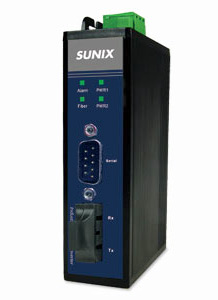

FTS-6011 Series
RS-232 to Fiber Media Converter

Introduction
SUNIX FTS-6011 converter provides interface exchange between RS-232 to fiber optic and vice-versa. RS-232 protocol is a popular and easy to design interface in today’s industrial environment and commercial application, however the distance is limited to 15 meters only.

FTS-6011 provides an ideal solution for extending the RS-232 transmission distance up to 100KM with single mode fiber or 5KM with multi-mode fiber. SUNIX FTS-6011 is designed for reliable and stable operation in harsh environments. Other enhance features include DIN-rail mounting, terminal block wiring, 12~48V redundant power input.

Features:

•	Industrial grade design for stability and reliability
•	Extends serial transmission distance up to 100 KM with Single Mode SC Fiber
•	Embedded ESD surge protection built-in
•	Protect against electronic degradation and chemical corrosion
•	Supports baud rate up to 460.8 Kbps with auto baud rate detection
•	12V DC Jack & External power 12~48V DC terminal block with reverse polarity protection
•	Detachable wall and din-rail mounting kit design
•	Plug-n-play & compact size designed

Ordering Information

FTS-6011 Series

RS-232 to Fiber Media Converter
