COMMUNICATION  -  Industrial Ethernet Switch Solutions

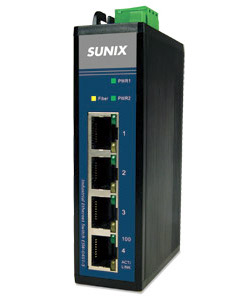

ESW0500/ESW0401
Industrial 5-port Unmanaged Ethernet Switch

Introduction
Recently, Ethernet is being employed on a wider basis in factory automation, it is imperative that Ethernet deliver these same characteristics. Industrial Ethernet switches were designed for environments that are not favorable to commercial switches. This can include environments with temperature extremes, high vibration and severe electrical noise.

SUNIX has listened to the market and has responded by introducing its latest generation of industrial Ethernet infrastructure products. SUNIX Ethernet switches (ESW series) are designed focus on Ethernet deployment in automation applications and specially developed for industrial Ethernet applications with all concerns for industrial environments taken into consideration. The advanced management features, Elite-Ring (communication redundancy technology), easy configuration and robust mechanical form factors enable quick installation for factory, transportation, building and utility automation applications. Redundant power inputs and relay output alarm provides the possibility to build an on-side alarm system. SUNIX switches are ideal for any application where performance demands are highest, environments are harsh and operations are non-stop.

Features:

• Expand 5-port 10/100BaseTX with RJ45 or SC Fiber connector.
• Compatible IEEE 802.3/ 802.3u / 802.3x protocol.
• Store and Forward switching process architecture.
• Support Full/Half-Duplex and auto MDI/ MDIX on 10/100M port.
• Support Broadcast Storm and Reverse Polarity Protection.
• Din-Rail and Wall mounting ability.
• Overload Current Protection up to 1.1A.
• Redundant 12 to 48 VDC power inputs via DC jack and Terminal Block.
• Wide operation temperature range 0°C to 70°C.

Ordering Information
