COMMUNICATION - Multi I/O Communication Solutions

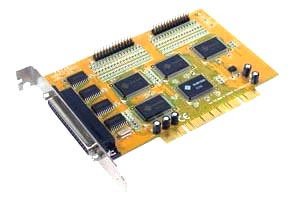

Universal PCI Solution 4096A/4089A/4079A
Multi-Port Universal PCI RS-232/Parallel Board

Features:

Low RMA rate and high reliability with Sunix's single chipset designed ASIC

Compliance with PCI ver. 2.2 spec. standard

Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power

Industrial grade design for stability and reliability

128K FIFO buffer can reduce CPU loading, less interruption and
improving system performance dramatically

Plug-n-Play, I/O address and IRQ assigned by BIOS

RS-232 industrial host controller series are certified by WHQL, CE, FCC approval

Support Microsoft Windows, Linux, and DOS

Introduction
Sunix universal PCI Multi-port serial card provides RS-232 Serial and Parallel connection ports on your system for industrial communication and automation applications. The 4089 card works on both 32-bit and 64-bit PCI Bus with 3.3V or 5V power, allowing this multi-port serial card to be installed in virtually any PC system and compatible with all major operating systems. The card supports multi independent RS-232 ports, with each port transfer data up to 921.6 Kbps and the parallel ports offers speed up to 2.7 MB/sec. Sunix universal PCI Multi-port serial cards is the best solution for various industrial communication and automation applications.

Ordering Information

Universal PCI Solution 4096A/4089A/4079A

Multi-Port Universal PCI RS-232/Parallel Board
