COMMUNICATION - Multi I/O Communication Solutions

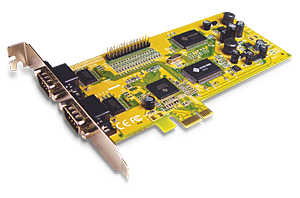

PCI Express Solution 4479A
2S/1P ports PCI Express RS-232/Parallel Board

Features:

Express 2 RS-232 and IEEE 1284 Parallel on system

Designed to meet PCI Express Bases Specification Revision 1.1

Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys

High speed SUN1889 UART and SUN 1688 Parallel controller on-board

Support IEEE 1284-1994 parallel port standard
ECP (Enhance Capacity Port) / EPP (Enhance Parallel Port)
SPP (Standard Parallel Port) / BPP (Bi-direction Parallel Port)

Built-in 15 KV ESD protection for all serial signals

Certified by Microsoft WHQL, CE, FCC approval

Support Linux, Microsoft Windows 2000, XP and 2003

Ready for the Intel® and AMD® 32 / 64-bit CPU system

Introduction
SUNIX 4479A PCI Express Multi-I/O communication board provides independent high speed RS-232 serial and IEEE 1284 interface, is compatible with PCI Express x1, x2, x4, x8 and x16 lane Bus, allowing the board to be installed in virtually any PC system that is equipped with PCI Express slot. The new slot standard supports Windows 2000 and above, plus Linux 2.4x and above kernel. SUNIX PCI Express card series is the advanced and high efficient solution, ideally for commercial and industrial automation applications.

Ordering Information

PCI Express Solution 4479A

2S/1P ports PCI Express RS-232/Parallel Board
