COMMUNICATION  -  TCP/IP to RS232/422/485

ESL-D0100 Series

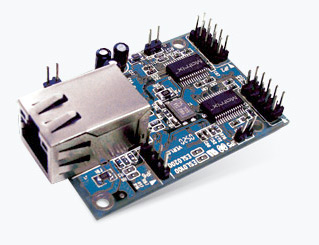

1 port RS-422/485 to Embedded SLAN with RJ-45 Connector

Introduction
SUNIX Serial over Ethernet SLAN Device Server Series are designed to easily network your current RS232/422/485 serial devices. It provides a convenient and economical solution not only to protect your current hardware investment, but also to ensure future network expandability. With SLAN, you can centralize serial devices and distribute the management hosts at the same time.

There are three types of SLAN Device Server for selection to match your application needs, including 4/2/1- port SLAN and 1- port Embedded SLAN. They provide a quick, simple and cost-effective way to allow you to access, manage , and configure remote facilities and equipment over the Internet from anywhere in the world.

Features:

• Supports 1 independent RS-422/485 serial device
• Embedded serial to Ethernet module networks serial device
• SUNIX SUN8989 SOC design for high efficiency and reliability
• Maximum throughput up to 1Mbps shared by each serial port
• Easy setup and configuration with user-friendly Windows SLAN Utility
• Ideal networking current serial devices with existing software or API
• Supports TCP Server, TCP Client, UDP and Real COM mode
• Single +5VDC input and 1W low power consumption
• 15 KV ESD Surge protection for all serial signals
