COMMUNICATION - USB to Serial Communication Solutions

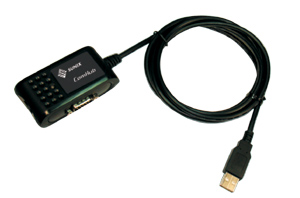

UTS2009/1009/1009D/1025
2/1 ports USB to RS-232 HUB

Features:

Compatible with USB 2.0 and 1.1

Supports wake-on-line & power management function

No IRQ, DMA, I/O Address resources required

Dual data buffers for upstream and downstream data flow

Supports Plug-n-play & Hot-swap

Serial high speed transfer up to 115 Kbps

RS-232 Automatic handshake mode

Cable Length : 1.5 Meter

Supports Windows O.S.

Introduction
Sunix's UTS2009 or UTS2009B is an USB to RS-232 adapter which offers the user serial port connections. The port have a data transfer rate up to 115 Kbps. Users are able to connect their serial devices through the adapter to the USB port on their system. The UTS series also support wake on line and power management function. It has dual data buffers for upstream and downstream data flow.

Ordering Information

UTS2009/1009/1009D/1025

2/1 ports USB to RS-232 HUB
