COMPUTING PLATFORM  -  Advanced TCA

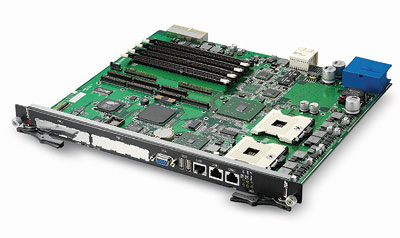

aTCA 6890
Advanced TCA Blade with Dual Intel Veon 800FSB Processor

Introduction

The aTCA-6890 is a Dual Intel® Xeon processor with 800MHz-FSB based AdvancedTCA blade. It supports Intel® EM64T 64-bit technology and dual channel DDR2-400 REG/ECC up to 16GB capacity. For data transport connectivity, it features dual 1000BASE-T GbE Base Interface channels and field-configurable quad 1000BASE-BX GbE Fabric Interface ports compliant with PICMG 3.1 Option1/2. Front panel I/O includes dual 64-bit 66/100/133MHz PCI/PCI-X PMC sites, USB 2.0 ports, 1000BASE-T GbE ports, one analog video and serial console. On-board peripherals includes two ATA100 channels with on-board DMA-enabled CF slot and one SATA 2.5" HDD site. Compatible Rear Transition Module (RTM) features RAID0/1 SATA 2.5" HDD and PMC I/O module (PIM). The Serial-Attached-SCSI (SAS) and Encryption expansion modules are also available.

Features:

• 800MHz FSB, 1MB L2 Cache, Hyper-Threading Processors
• Intel® EM64T 64-bit Extended Memory Technology
• Dual DDR2-400 REG/ECC Channels with 16GB Maximum Capacity
• Intel® E7520/6300ESB/6700PXH Chipset
• Dual 64-bit 33/66/100/133MHz PCI/PCI-X PMC with PIM
• Quad 1000BASE-BX GbE Fabric Interface Channels
• Configurable PICMG 3.1 Option1/2 Compliant
• RAID 0/1 Enabled RTM
