COMPUTING PLATFORM - CompactPCI / PXI Platforms

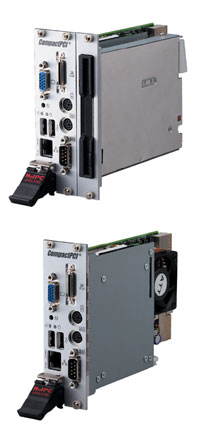

cPCI-3700A
3U CompactPCI Intel Pentium III and Celeron Processor Module with VGA,LCD, Ethernet

The cPCI-3700A is an all-in-one high performance, general purpose 3U CompactPCI system host CPU module. It is the ideal choice on which to base a computing platform or an embedded controller for military, HMI, traffic control, and mission critical industrial automation applications.

Features:

Supports up to 850MHz Intel® Pentium® III processor with FC-PGA packaging

One 144-pin SO-DIMM socket supports up to 256MB RAM with optional ECC support

Build-in housing for 2.5" ATA-HDD or Flash Drive

Two front panel USB ports, two serial ports, one parallel port

AGP 2x VGA/LCD display output by SMI SM721 controller with 8MB VRAM

On-board 10/100Mps Ethernet port by Intel 82559 controller

Supports Intel pre-boot execution environment (PXE) for remote boot

3 or 2 slots width configurations are available for customized applications

Note: 2 slot version is shipped without FDD.

Ordering Information

cPCI-3700A

3U CompactPCI Intel Pentium III and Celeron Processor Module with VGA,LCD, Ethernet
