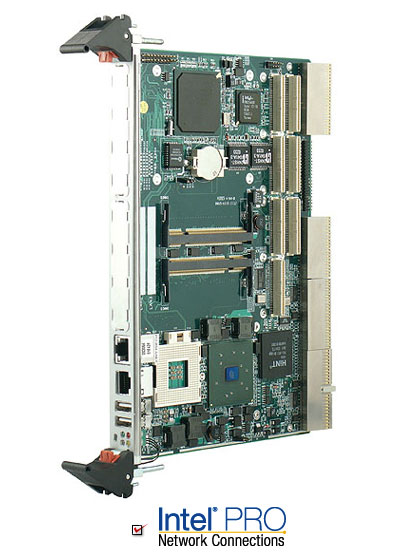

cPCI-6840 Series
6U CompactPCI Highly Integrated Intel Pentium M Professor PCI 64-bit/66MHz Universal Blade

The cPCI-6840 Intel® Pentium® M processor blade is designed with versatile features and options for OEM applications. The CPU options include the low power Intel® Pentium® M 1.6GHz with 1MB cache, the high performance Intel® Pentium® M with 2MB cache or the Ultra Low Voltage Intel® Celeron® processor. The product incorporates the embedded Intel® 855GME chipset, which supports up to 2GB DDR RAM. It also includes CRT, DVI, and LVDS display interface options. Additional features of the cPCI-6840 are three Gigabit Ethernet ports, two 64-bit/66MHz PMC sites, and a PCI 64-bit/66MHz capable universal CompactPCI bus to achieve high communication bandwidth. The cPCI-6840 series offers the best balance between computing performance, communication bandwidth, and power consumption.

Features:

• Low power consumption, support Intel® Pentium® M and Celeron® M Processors
• Universal operation on either system or peripheral slots
• 64-bit/66MHz CompactPCI bus, compliant PICMG 2.1, 2.9 and 2.16
• Two 64-bit/66MHz PMC sites, optional SCSI on PMC2 rear I/O
• Up to 2GB PC2700 DDR SDRAM
• Three Gigabit Ethernet ports
• Multiple storage options: IDE, Serial ATA, CompactFlash, and SCSI
• Display interfaces: CRT, DVI, and LVDS
