COMPUTING PLATFORM  -  CompactPCI / PXI Platforms

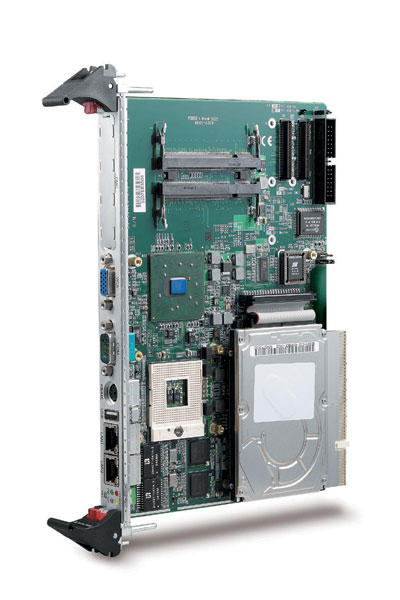

cPCI-6841
6U Compact PCI Single Slot Intel Pentium M Processor System Host SBC

The cPCI-6841's Intel® Pentium® M processor, high performance integrated graphics, dual Gigabit Ethernet ports and DB-9 Serial port combine to provide the outstanding performance computing solution available today. As a 32-bit, 33MHz CompactPCI system board, the cPCI-6841 series versatile I/O and low cost advantages are best for high-end industrial control, automation, non-telecommunication computers, and mission-critical applications.

Features:

• Standard 6U form factor with 1-slot (4TE/HP) space
• Supports Intel® Pentium® M and Celeron® M Processors
• Up to 2GB DDR 333 ECC non-Registered Memory module
• 32-bit/33MHz CompactPCI bus
• Dual 10/100/1000Mbps Ethernet ports
• Supports Intel pre-boot execution environment (PXE) for remote boot

Ordering Information
