COMPUTING PLATFORM  -  CompactPCI / PXI Platforms

cPCI-6842

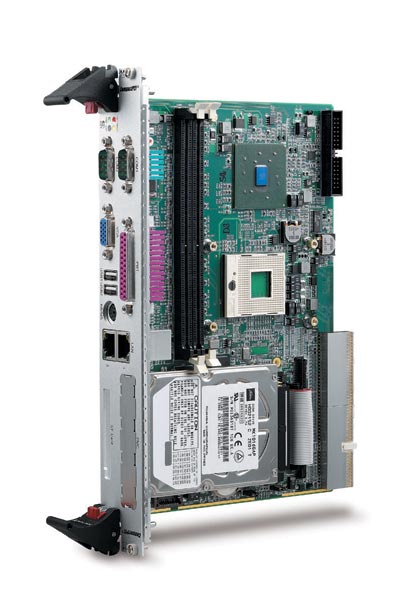

6U CompactPCI Dual Slot Intel Pentium M Processor System Host SBC

We are pleased to introduce you the new 6U CompactPCI single board computer cPCI-6842, a lower power consumption at lower price solution. The cPCI-6842 is based on the Intel® Pentium® M processor and 855GME/ICH4 chipset. The Pentium® M processor operating frequency ranges from 1.3GHz up to 2.0GHz and it comes with 1MB/2MB L2 cache in an FC-mPGA package. The combination of the longevity of the Intel® 855GME/ICH4 chipset and low power consumption of the Pentium ® M CPU make the cPCI-6842 the ideal solution for embedded applications.

Features:

• Standard 6U form factor with 2-slot (8TE/HP) space
• Supports Intel Pentium® M/Celeron® M Series Processors
• Up to 2GB DDR 333 ECC non-Registered Memory module
• 32-bit/33MHz CompactPCI bus
• Dual 10/100/1000Mbps Ethernet ports
• Supports Intel pre-boot execution environment (PXE) for remote boot

Ordering Information
