COMPUTING PLATFORM - CompactPCI / PXI Platforms

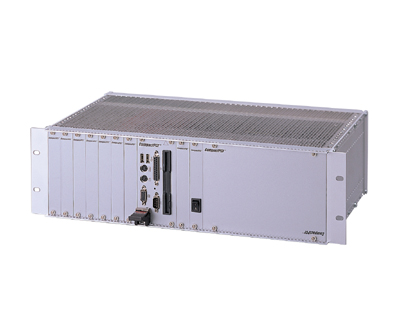

cPCIS-1100A Series
3U Enclosure with 32-bit Backplane, ATX/CompactPCI Redundant Power Supply

Features:

3U CompactPCI single system, 7 peripheral card configuration or dual system, 5 peripheral card configuration

Equipped with single PS/2 form factor 400W ATX power supply or CompactPCI redundant power supply (Max. output 500W)

Suitable for both rack-mount and desktop applications

Comprehensive EMC shielding

Optional rear I/O configuration

Note:

1.	External cooling fan is required.
2.	Power Supply Module description:• ATX: Universal Auto Switch 400W Power Supply • 2: CompactPCI redundant power supply x 2 (500W) • 1/1: One Power Supply for each segment.
3.	EMC blank panels (cPCI-Panel-Kit-3U1S) are optional. All models above do not include any system or peripheral boards.
4.	DC input models available for OEM programs

Ordering Information

cPCIS-1100A Series

3U Enclosure with 32-bit Backplane, ATX/CompactPCI Redundant Power Supply
