COMPUTING PLATFORM - CompactPCI / PXI Platforms

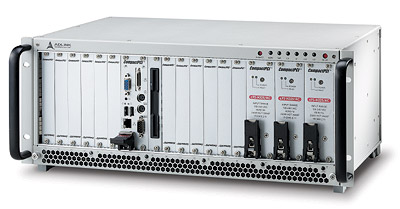

cPCIS-2633
3U CompactPCI Sub-system with 13-slot Backplane, 2+1 CompactPCI Redundant Power Modules

Features:

3U CompactPCI backplane with 12 peripheral card slots and 1 system slot

2+1 hot swappable 500W+250W CompactPCI Power supply (each with 250W redundant)

Temperature, voltage, and fan monitoring LEDs

Supports current sharing on +5V, +3.3V, and +12V

PICMG 2.11 47-pin power interface.

Hot-swappable cooling fans & filter

Supports rear I/O, BP with P2 Connectors (cPCIS-2633R)

Note:
1. EMC blank panels (cPCI-Panel-Kit-3U1S) are optional. All models above do not include any system or peripheral board.
2. One cPCI segment, removable PCI to PCI bridge card for bus extension, system slot in the middle.

Ordering Information

cPCIS-2633

3U CompactPCI Sub-system with 13-slot Backplane, 2+1 CompactPCI Redundant Power Modules
