COMPUTING PLATFORM - CompactPCI / PXI Platforms

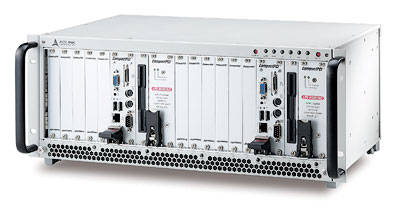

cPCIS-2642
Dual 3U CompactPCI Sub-system with CompactPCI Power Modules

Features:

Dual 3U CompactPCI Systems, each with 5 peripheral card slots and 1 system slot
1/1 hot swappable 250W CompactPCI Power supplies
Temperature, voltage, and fan monitoring LEDs
Supports current sharing on + 5V, +3.3V, and +12V
PICMG 2.11 47-pin power interface
Hot-swappable cooling fans & filter
Supports rear I/O, BP with P2 Connectors (cPCIS-2642R)

Note: EMC blank panels (cPCI-Panel-Kit-3U1S) are optional. All models above do not include any system or peripheral board.

Ordering Information

cPCIS-2642

Dual 3U CompactPCI Sub-system with CompactPCI Power Modules
