COMPUTING PLATFORM - CompactPCI / PXI Platforms

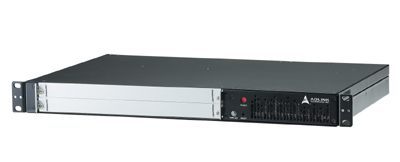

cPCIS-6130R
2-slot CompactPCI Rackmount Chassis

Features:

19" rackmount, 1U height for 6U cPCI boards with 80mm rear I/O

PICMG 2.1 Hot Swap compliant 64-bit 2-slot CompactPCI backplane

One cPCI segment, lower side system slot

Built-in 200W AC input power supply

Guarded power switch and reset button

Note: All models above do not include any system or peripheral board.

Ordering Information

cPCIS-6130R

2-slot CompactPCI Rackmount Chassis
