COMPUTING PLATFORM  -  Full Size

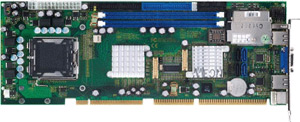

FSB-868G
Intel Pentium 4 / Celeron-D up to 3.8GHz PICMG Full-Size SBC

Introduction

AAEON announces a new full-size form factor Single Board Computer (SBC) - FSB-868G, which is based on the use of Intel Pentium D LGA 775/ Pentium 4 processors.  FSB-868G utilizes Intel LGA 775 Pentium 4 CPU with high CPU core frequencies up to 3.8GHz, Pentium D up to 3.6GHz and Celeron D up to 3.8GHz with the Front Side Bus (FSB) running from 533 to 1066MHz. FSB-868G supports dual channel DDRII 533/667 system memory up to 2GB.  The VGA Controller of FSB-868G integrates Intel 945G chipset with core frequency up to 400MHz and integrates GMA950 2D/3D graphics accelerator to provide higher performance to graphic processing.  AAEON has Intel's long-term supply commitment and guarantees the product’s long-life cycle.

In addition to the powerful computing engine, FSB-868G is equipped with USB2.0 ports, one Mini-DIN PS/2 keyboard & mouse connector, one IrDA header and one standard Floppy Disk Drive.  Moreover, it supports Ultra ATA 100, four SATA II and CompactFlash Type II storages.  These versatile expansion interfaces bring FSB-868 great flexibility to serve varying application demands. Its huge capacity and excellent compatibility are also ideal for system integrators for system planning and device combinations.

Features:

  • Supports Intel Pentium 4/ Pentium D LGA775 CPUs up to 3.8GHz (Dual Core CPU)

  • DDR II 667 Memory Supports up to 4GB

  • Integrated GMA950 2D/3D Graphics Accelerator, VGA Support

  • Supports Dual Channel LVDS Output (Optional)

  • Supports 10/100/1000Base-TX Ethernet (Optional) x 2

  • Supports Ultra ATA100 & SATA II x 4 & CompactFlash Type-II Storage

  • 7 USB 2.0/ 2 RS-232/422/485/ 1 Parallel/ 1 IrDA Ports

  • Watchdog Function 1~255 Sec.

    Ordering Information

    FSB-868G

    		 Intel Pentium 4 / Celeron-D up to 3.8GHz PICMG Full-Size SBC
