COMPUTING PLATFORM - GEME

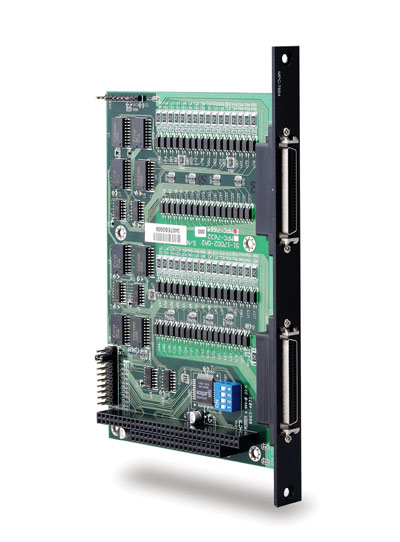

MPC-7664/32/32AU
Isolated 64/32-CH DI/DO Modules

Features:

Number of Channels: 32 in/32 out MPC-7664.
External Interrupt Channel: 1
Bus: PC-104
Input Voltage: 12 VDC~24 VDC
Input Current: 5~15 mA/bit (Max.)
Output Current: 80 mA (Max.)
Output Voltage Drop: 1.0 V (Max.)
OS Driver Support: DOS, Linux (kernel 2.4.18), Windows98/NT/2K/XP Embedded, Windows CE

Ordering Information

MPC-7664/32/32AU

Isolated 64/32-CH DI/DO Modules
