COMPUTING PLATFORM - GEME

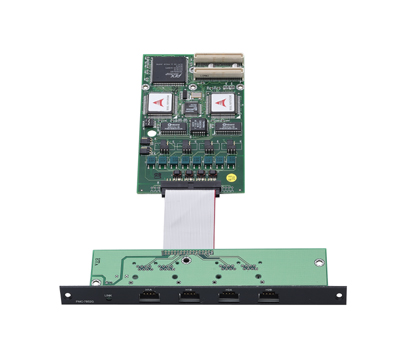

PMC-7852/G
PMC High Speed Link Master Controller Interface Modules

Features:

PCI Bus: 32-bit/33 MHz
V (I/O): 3.3 V or 5 V Universal V (I/O)
Transfer Speed: 6 Mbps (default) up to 12 Mbps
Max. Communications Distance: 200 meters for each port under 6 Mbps
Max. Controllable Points: 2016 input and 2016 outputs
Transfer Mode: Half/Full Duplex
I/O Scan Time: About 1ms for scanning 1000 points(6 Mbps)
Connector: RJ-45 phone jack connector

Ordering Information

PMC-7852/G

PMC High Speed Link Master Controller Interface Modules

Associated Software

OPC_RN	OPC Release Note
OPC Server	HSL OPC Server Version 2.0.0.2
