AAEON releases a high performance, low power consumption SBC - - HSB-811P to target the Shoe-box application and Digital Video Recorder (DVR) markets. The HSB-811P is powered by an Intel Celeron M 600 processor on board. It is a half-size form factor single board computer (SBC) with an onboard VGA, mini-PCI socket, 10/100/1000Mb LAN optional and five USB 2.0 ports, and supports LVDS signal transmission for LCDs. The HSB-811P was developed to complete AAEON's product line in Pentium 4-level short card series and provide customers with higher performance. To meet the different demands on the wide range of industrial applications, HSB-811P is your best choice.
COMPUTING PLATFORM -
Half Size

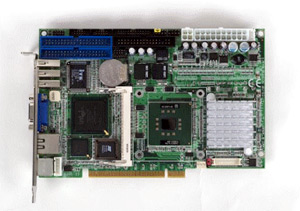

HSB-811P
Intel Pentium M PCIMG / PCI Half-size SBC
Features:
Onboard Type/ Socket Type Low Power CPU, Pentium M/ Celeron M
DDR 266 Memory Supports up to 2GB
Integrated AGP 4X 2D/3D Graphics Accelerator, LVDS Support
AC97 Codec Audio (Daughter Board Optional)
Supports One 10/100/1000 Base-TX Ethernet (One 10/100 & GbE Optional)
Supports Ultra ATA-100 & CompactFlash Type II
Supports Mini-PCI Type-III Socket
USB 2.0 x 5/ RS-232 x 1, RS-232/422/485 x 1, Parallel x 1, IrDA x 1
Watchdog Function 1~255 Sec.
Introduction
Ordering Information
|
HSB-811P |
Intel Pentium M PCIMG / PCI Half-size SBC |
