COMPUTING PLATFORM - Half Size

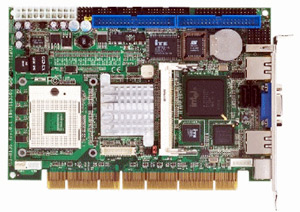

HSB-813S
Intel Pentium M / Celeron Up To 2.0GHz PCISA Half-Size SBC

Features:

Onboard Intel Pentium-M Socket 479

DDR333 Memory Supports Up To 2GB

Integrated AGP 4X 2D/3D Graphics Accelerator, LVDS Support

Integrated AC97 Codec Audio (Daughter Board Optional)

Supports Two 10/100/1000Base-TX Ethernet (10/100 & GbE Optional)

Supports Ultra ATA100 & CompactFlash Type-II & 2 x SATA-150 Ports

Supports Mini PCI, Type III Socket

5 x USB 2.0/ 1 x RS-232, 1 x RS-232/422/485 / 1 x Parallel/ 1 x IrDA Port

Watchdog Function 1~255 Sec.

Ordering Information

HSB-813S

Intel Pentium M / Celeron Up To 2.0GHz PCISA Half-Size SBC
