COMPUTING PLATFORM  -  Half Size

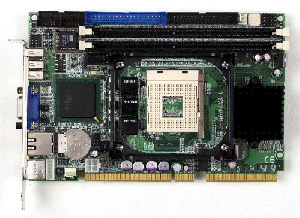

HSB-835A
Intel Pentium 4 3.2GHz APCI Half-size SBC

Features:

  • Supports Intel Pentium 4 CPU up to 3.2GHz

  • DDR400 Memory Supports Up to 2GB

  • Integrated AGP 8X 2D/3D Graphics Accelerator, VGA Supports

  • Integrated AC-97 Codec Audio (Daughter Board Optional)

  • Supports one 10/100/1000Base-TX Ethernet (10/100 & GbE Optional)

  • Supports Ultra ATA100 & SATA & CompactFlash Type-I Storage

  • 7 USB 2.0 Ports / RS-232 X 1, RS-232/422/485 X 1 / 1 Parallel / 1 IrDA Port

  • Watchdog Function 1 ~ 255 Sec.

  • Introduction

    Introducing AAEON's new HSB-835A, powered by Intel Pentium4/Prescott processors, a half-size form factor single board computer (SBC) with an onboard VGA, 10/100/1000Mb LAN optional and seven USB 2.0 ports. HSB-835A successfully employs Intel most advanced 82865G chipset, which supports high CPU frequencies up to 3.2 GHz with a front side bus running at 400/533/800MHz. HSB-835A supports Intel Hyper-Threading Technology giving you the best overall Pentium 4/Prescott processor performance available. HSB-835A also provides high memory capacity up to 4 GB of DDR DRAM (DDR 200/266/333/400) and supports Dual-channel (128 bits wide) DDR memory interface. HSB-835A is a versatile Pentium 4/ Prescott half-size CPU card with the best cost-performance for automation, networking and mini-server markets.

    Ordering Information

    HSB-835A

    Intel Pentium 4 3.2GHz APCI Half-size SBC
