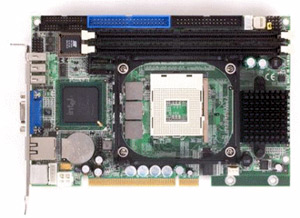

The HSB-835P which is powered by Intel Pentium 4/Prescott processors is a flexible half-size form factor single board computer (SBC) with an onboard VGA, 10/100/1000Mb LAN optional and seven USB 2.0 ports. Intel's most advanced 865GV chipset was deployed in HSB-835P which supports high CPU frequencies up to 3.2 GHz with a front side bus running at 400/533/800MHz. HSB-835P supports Intel Hyper-Threading Technology giving you the best overall Pentium 4/Prescott processor performance available. HSB-835P features high memory capacity up to 2 GB DDR DRAM (DDR 266/333/400) and supports Dual channel DDR memory interface.
COMPUTING PLATFORM -
Half Size
HSB-835P
Intel Pentium 4 3.2Ghz PICMG_PCI, Half-size SBC
Features:
Supports Intel Pentium 4 CPU up to 3.2GHz
Supports DDR400 Memory up to 2GB
Integrates AGP 8X 2D/3D Graphics Accelerator, VGA Support
Integrates AC97 Codec Audio (Daughter Board Optional)
Supports 10/100/1000 Base-TX Ethernet Port x 1 (10/100& GbE Optional)
Supports Ultra ATA100 & SATA & CompactFlash Type-I Storage
Supports 7 USB 2.0 Ports
Supports RS-232 x 1, RS-232/422/485 Port x 1
Supports Parallel Port x 1
Supports 1 IrDA Port Watchdog Function 1~255 Sec.
Introduction
Ordering Information
|
HSB-835P |
Intel Pentium 4 3.2Ghz PICMG_PCI, Half-size SBC |
