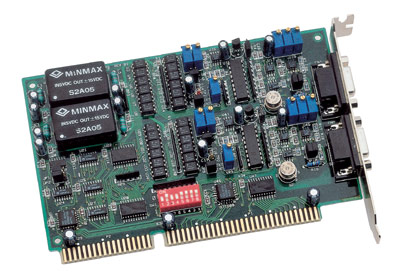

ACL-6128A
2-CH 12-Bit Isolated Analog Output Card

Introduction

ADLINK ACL-6128A is a 2-CH, 12-bit, Isolated Analog Output Card. The ACL-6128A device features flexible configurations on analog outputs. It provides 2 programmable output ranges for both bipolar and unipolar output. With the optical isolation, the ACL-6128A device features protection for both system and external devices. The ACL-6128A also features 2-CH current output, and the sink current ranges from 0 to 20 mA or 4 to 20 mA. ADLINK ACL-6128A delivers cost-effective and reliable analog output capabilities and is ideal for a broad variety of applications.

Features:

  • Fully compatible with ADLINK phased-out ACL-6128 in software and hardware
  • 2-CH 12-bit multiplying analog outputs
  • Bipolar or unipolar voltage output ranges
  • Unipolar current output ranges
  • 2500 VRMS optical isolation
  • Compact, half-size PCB
  • Register structure compatible with PCL-728

Ordering Information

ACL-6128A

 2-CH 12-Bit Isolated Analog Output Card
