DATA ACQUISITION   -  ISA DIO Cards

ACL-7225
16-CH Relay Outputs & 16-CH Isolated DI Card

Introduction

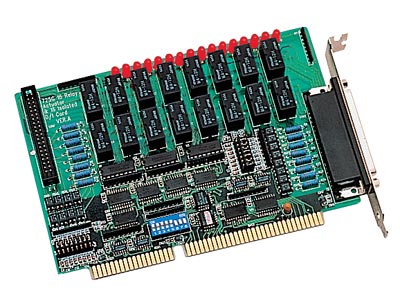

ADLINK ACL-7225 provides 16-CH relay outputs and 16-CH isolated digital inputs. Eight of the relays are SPDT (Form C) and eight are SPST (Form A), which are suitable for device connection with ON/OFF control. The status of each relay output is represented by an on-board LED. When the relay is energized, its corresponding LED will turn ON, otherwise it is OFF. All of the digital input channels are non-polarity and optically isolated. Users can set for each digital input by using RC filter or not. The device is suitable for collecting digital inputs in noisy environments.

Features:

• PC AT bus
• 8-CH SPDT (Form C) & 8-CH SPST (Form A) relays
• Non-latching relays
• On-board LED indicators for relay status
• On-board relay driving circuits
• Relay output status read back
• 16-CH isolated digital inputs
• On-board low-pass filtering for digital inputs
