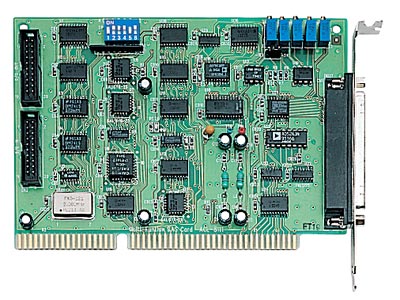

ACL-8111
8-CH 12-Bit 50kS/s Low Cost Multi-Function DAQ Card

Introduction

ADLINK ACL-8111 is an 8-CH, 12-bit, 50 kS/s low cost multi-function DAQ card for ISA computers. The ACL- 8111 features flexible configurations on analog inputs with the A/D featuring a sampling rate of up to 50 kS/s with resolution at 12 bits. The ACL-8111 device also features 5 programmable input ranges for bipolar inputs. The register map is fully compatible with the PCL-711B. The ACL-8111 also features 1-CH 12-bit analog output, 16-CH TTL digital inputs and 16-CH TTL digital outputs. ADLINK ACL-8111 delivers cost-effective and reliable data acquisition capabilities and is ideal for a broad variety of applications.

Features:

• 12-bit A/D resolution
• Up to 50 kS/s sampling rate
• 8-CH single-ended inputs
• Programmable gains of x1, x2, x4, x8, x16
• Bipolar analog input ranges
• 1-CH 12-bit monolithic multiplying analog output
• 16-CH TTL digital inputs and 16-CH TTL digital outputs
• 3 Programmable A/D trigger modes
