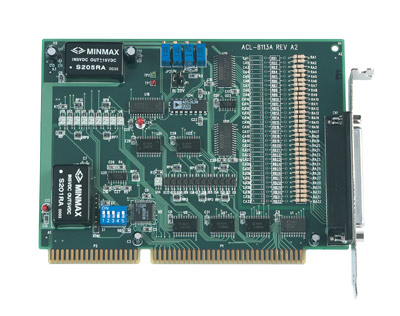

ACL-8113A
32-CH 12-Bit 30kS/s Isolated Input Card

Introduction

ADLINK ACL-8113A is a 12-bit 32-CH isolated analog input card with ISA interface. The ACL-8113A is designed to meet high voltage isolation on each analog channel. Isolated input signal design protects the PC and peripherals from damage due to high voltages on the input channels. The on-board signal conditioning circuits help user to attenuate the analog input or provide the holes for I-to-V conversion. In addition, two DC-to-DC converters and software programmable gain on each channel are provided for stability and flexibility. The ACL-8113A is a cost-effective solution for applications in industrial measurement and monitoring.

Features:

  • 12-bit A/D resolution
  • Up to 30 kS/s sampling rate
  • 32-CH single-ended inputs
  • Bipolar or unipolar analog input ranges
  • Programmable gain of x1, x2, x4, x8, x16
  • 2500 VRMS optical isolation
  • Compact, half-size PCB
  • Register structure compatible with PCL-813

Ordering Information

ACL-8113A

 32-CH 12-Bit 30kS/s Isolated Input Card

Associated Software

ACLS-LVIEW

 LabVIEW 8482; Interface for NuDAQ ISA-bus of Data Acquisition Cards
