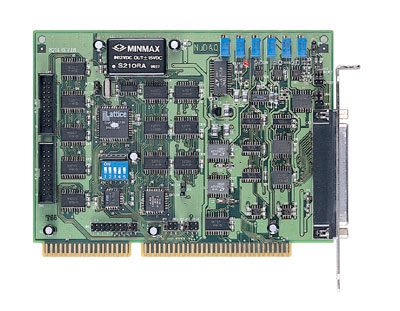

ACL-8216
16-CH 16-Bit 100kS/s Multi-Function DAQ Card

Introduction

ADLINK ACL-8216 is a 16-CH, 16-bit, 100 kS/s multi-function DAQ Card. The ACL-8216 device features flexible configurations on analog inputs. It provides analog inputs with 4 programmable input ranges for bipolar inputs. The A/D on the ACL-8216 device features a sampling rate of up to 100 kS/s with resolution at 16 bits. The device supports automatic analog input scanning, and offers a differential mode for 8-CH analog inputs and maximum noise elimination, as well as single-ended modes for 16-CH analog inputs. The ACL-8216 also features 2-CH 12-bit analog outputs, 1-CH 16-bit general purpose timer/counter, 16-CH TTL digital and 16-CH TTL digital outputs. ADLINK ACL-8216 delivers cost-effective and reliable data acquisition capabilities and is ideal for a broad variety of applications.

Features:

• 16-bit A/D resolution
• Up to 100 kS/s sampling rate
• 16-CH single-ended or 8-CH differential inputs
• Bipolar analog input ranges
• Programmable gains of x1, x2, x4, x8
• Automatic analog input scanning
• DMA for analog inputs
• 2-CH 12-bit multiplying analog outputs
