DATA ACQUISITION   -  ISA DIO Cards

ACL-8454/12
8-CH 16-Bit Counters 2-CH 32-Bit Timer & Digital I/O Card

Introduction

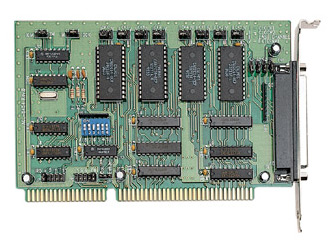

ADLINK ACL-8454/12 is a general-purpose timer/counter and digital I/O card. It is a compact-size add-on card for IBM AT compatible PC in control, monitoring and sensing applications. ACL-8454/12 has four 8254 chips which results in eight general-purpose 16-bit counters and two 32-bit timer. The counters can be set as independent counters or cascaded counters. The gate control of every counter comes from either external source or internal cascaded counters. The clock source comes from either internal timebase or external inputs, which can be selected by jumper setting. ADLINK ACL-8454/12 delivers cost-effective and reliable digital output capabilities and are ideal for a broad variety of applications.

Features:

• 8-CH timers/counters
• 2-CH cascaded 32-bit timer with 1 MHz base clock
• On-board multiple base clocks ranging from 100 kHz to 2 MHz
• External gate control and clock inputs for each counter
• Inverted gate signals for 4-CH synchronized frequency measurement
• Multiple interrupt sources from counter outputs, timer outputs and external interrupt inputs
