DATA ACQUISITION   -  PC 104 Plus Cards

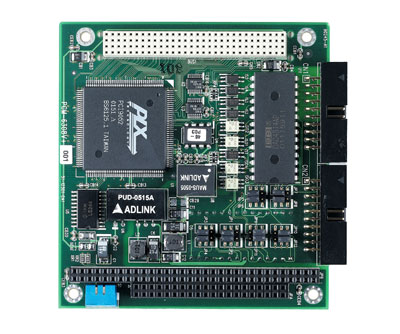

PCM-6308V+
PC/104-Plus 8-CH 12 Bit Isolated Analog Output Module

Features: PC/104-Plus specifications Rev. 1.2 compliant 12-bit D/A resolution Bipolar or unipolar output ranges Isolated 8-CH 12-bit voltage outputs External reference input for user-defined ranges 4-CH isolated digital outputs and 4-CH isolated digital inputs 2500 VRMS optical isolation voltage

Introduction

The ADLINK PCM-6308V+ is a high-performance, 12-bit analog output module with PC/104-Plus interface. It provides 8 identical voltage output channels, with each channel capable of bipolar voltage outputs, unipolar voltage output and unipolar 0 to user defined voltage output. The PCM-6308V+ provides good monotonicity, low distortion, and low differential linearity error over long periods of time. The output ranges of the PCM-6308V+ are bipolar -10 to +10 V, unipolar 0 to 10 V and as well as user-defined ranges with external reference input, which are jumper selectable. Incorporating the PCI bus within the industry proven PC/104 form-factor brings many advantages including fast data transfer over a PCI bus and high reliability due to PC/104's inherent ruggedness. ADLINK PCMI- 6308V+ device provides flexible and isolated analog output functionalities and are suitable for ATE, signal generation, industrial process control, servo control and other industrial control applications.

Ordering Information

Associated Software
