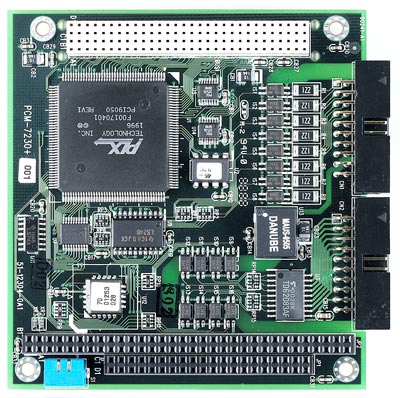

PCM-7230+
PC/104-Plus 16-CH Isolated DI & 16-CH Isolated DO Module

Features: PC/104-Plus specifications Rev. 1.2 compliant 16-CH isolated digital inputs and 16-CH isolated digital outputs Non-polarity digital input range Isolated input voltage up to 24 V 2500 VRMS optical isolation Sink current up to 500 mA on each isolated output Two external interrupt sources

Introduction

ADLINK PCM-7230+ is a 32-CH isolated digital input and output module for PC/104-Plus form factor. It provides a robust 2500 V isolation protection which is suitable for most industrial applications. The wide input range makes it easy to sense the status of external devices. The non-polarity characteristic is suitable for a wide variety of industry applications. The PCM-7230+ device features a wide output range from 5 to 35 V, which is suitable for relay driving and industrial automation applications. The device also provides two interrupt sources on digital input channels, which are easily user configurable.

Ordering Information

Associated Software
