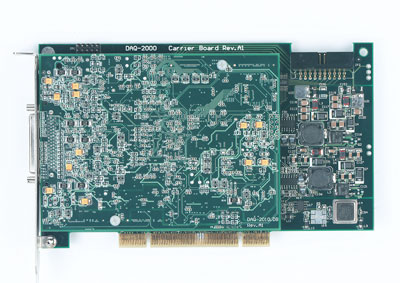

DAQ-2000 Series Overview
The Smart DAQ Solutions

Features: Supports a 32-bit 3.3 V or 5 V PCI bus 4-CH differential analog inputs Up to 2 MS/s simultaneous-sampling rate (DAQ-2010) 14-bit A/D resolution (DAQ-2010) 16-bit A/D resolution (DAQ-2005,DAQ-2006 & DAQ-2016) Up to 8 k-sample A/D FIFO (DAQ-2010) Bipolar or unipolar analog input ranges Programmable gains of x1, x2, x4, x8

Introduction
ADLINIK DAQ-2010, DAQ-2005,DAQ-2006 and DAQ-2016 are simultaneous-sampling multifunction DAQ cards to meet a wide range of application requirements. The devices can simultaneously sample 4 AI channels with differential input configuration in order to achieve maximum noise elimination. They also provide 2-CH 12-bit analog outputs with waveform generation capability, which can be performed together with analog input functions. If more analog input or output channels are required, multiple cards can be synchronized through the SSI (system synchronization interface) bus. This makes the DAQ-2000 series ideal for the stimulus/response test. The DAQ-2000 series also feature analog and digital triggering, 24-CH programmable digital I/O lines, and 2- CH 16-bit general-purpose timer/counters. The auto-calibration functions adjust the gain and offset to within specified accuracies such that you do not have to adjust trimpots to calibrate the cards.

Ordering Information

Associated Software
