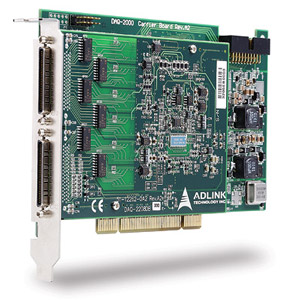

DAQ-2208
96-CH 12-Bit 3 MS/s Ultra High Density Analog Input Card

Features:

  • 12-bit A/D and sampling rate up to 3MS/s
  • 96/64-CH single-ended or 48/32-CH differential inputs
  • 1024/512-configuration channel-gain queue
  • Analog and digital trigger
  • Bus-mastering DMA with scatter-gather technology
  • Full auto calibration
  • Multiple cards synchronization
  • 2-CH 12-bit 1Ms/s analog outputs with waveform generation functionality (DAQ-2204 only)

Ordering Information

DAQ-2208

 96-CH 12-Bit 3 MS/s Ultra High Density Analog Input Card

Associated Software

DAQBench English V2.42

 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Simplified Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Traditional Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQ-LVIEW PnP 1.25 V1.25,LabVIEW PnP interface for ADLINK Data Acquisition Cards
DAQ-MTLB V1.01 V1.01,MATLAB Data Acquisition Toolbox Adapter for ADLINK DAQ Cards
