DATA ACQUISITION - PCI DAQ Cards

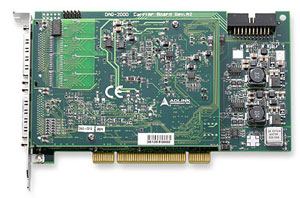

DAQ-2213/2214
16-CH 16-Bit 250 kS/s Low-Cost Multi-Function DAQ Cards

Features:

16-bit A/D and sampling rate up to 250kS/s

16-CH single-ended or 8-CH differential inputs

512-configuration channel-gain queue

Analog and digital trigger

2-CH 12-bit 1MS/s analog outputs with waveform generation functionality (DAQ-2214)

Bus-mastering DMA with scatter-gather technology

Full auto calibration

Multiple cards synchronization

Ordering Information

DAQ-2213/2214

16-CH 16-Bit 250 kS/s Low-Cost Multi-Function DAQ Cards

Associated Software

DAQ-LVIEW PnP 1.25	V1.25,LabVIEW PnP interface for ADLINK Data Acquisition Cards
DAQ-MTLB V1.01	V1.01,MATLAB Data Acquisition Toolbox Adapter for ADLINK DAQ Cards
