DATA ACQUISITION   -  PCI DAQ Cards

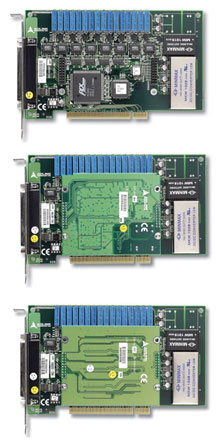

PCI-6208/6216 Series
8/16-CH 16-Bit Analog Output Cards

Introduction ADLINK PCI-6208 series are 8 or 16-CH, 16-bit, analog output cards. The PCI-6208V offers 8 voltage outputs with ?ӱ0 V range, featuring 15-bit monotonicity and 10 V/µs slew rate. The on-board analog switches minimize the power-on glitches. Combining one PCI-6208V and one EXP-8V, the PCI-6216V expands the voltage output channels to a total of 16 for higher analog output density requirements. In addition to the voltage output functions, the PCI-6208A features 8 current outputs with ranges of 0-20 mA, 4-20 mA, and 5-25 mA. The daughter board EXP-8A provides high-quality voltage to current transducers. The PCI-6208A device is capable of delivering 14-bit monotonicity with 1.3 mA/µs slew rate. ADLINK PCI-6208 series devices provide high resolution, high-density analog output functionalities and are suitable for ATE, signal generation, industrial process control, servo control and other industrial control applications.

Features:

• Supports a 32-bit 5 V PCI bus
• 16-bit D/A resolution (PCI-6208V and PCI-6216V)
• Effective 15-bit resolution current transducers (PCI-6208A)
• 8-CH voltage outputs (PCI-6208V and PCI-6208A)
• 16-CH voltage outputs (PCI-6216V)
• 8-CH current outputs (PCI-6208A)
• Bipolar analog output range
• 4-CH TTL digital inputs and 4-CH TTL digital outputs
