DATA ACQUISITION   -  PCI DAQ Cards

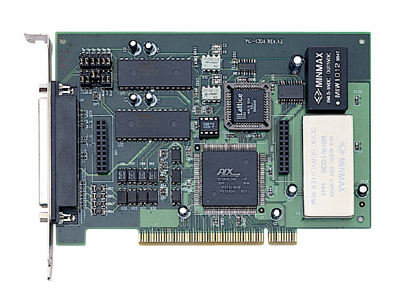

PCI-6308 Series
8-CH 12-Bit Isolated Analog Output Cards

Features:

  • Supports a 32-bit 5 V PCI bus
  • Isolated 8-CH 12-bit voltage output
  • 2500VRMS optical isolation
  • Jumper selectable bipolar and unipolar output ranges
  • 4-CH isolated DI and 4-CH isolated DO
  • Current output version available on PCI-6308A

Ordering Information

PCI-6308 Series

 8-CH 12-Bit Isolated Analog Output Cards

Associated Software

DAQBench English V2.42

 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Simplified Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Traditional Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
PCIS-OCX V2.41 ActiveX Controls for ADLINK Devices
DAQ-LVIEW PnP 1.25 V1.25,LabVIEW PnP interface for ADLINK Data Acquisition Cards
PCIS-OPC V2.1 OPC 2.1Compliant Servers for ADLINK Hardware Devices
D2K-VEE V1.12 VEE™ Interface
DAQ-MTLB V1.01 V1.01,MATLAB Data Acquisition Toolbox Adapter for ADLINK DAQ Cards


Download Area:


click on arrow
 to download

 Driver Utility BIOS Associated Software Manual Datasheet
