DATA ACQUISITION   -  PCI DAQ Cards

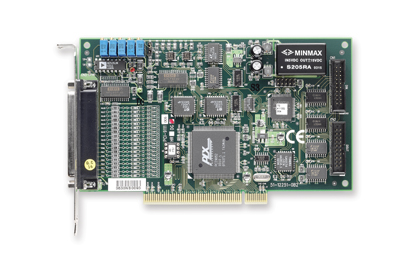

PCI-9111 Series
16- CH 12/16-Bit 100 kS/s Low Cost Multi-Function DAQ Cards

Introduction

ADLINK PCI-9111 series are 16-CH, 100 kS/s low cost multi-function DAQ card. The PCI-9111 series feature flexible configurations on analog inputs. A RC filter is implemented on each A/D input channel for user to attenuate or filter input signal. The PCI-9111 series provide analog inputs with 5 programmable input ranges for bipolar inputs. The PCI-9111 series also support automatic analog input scanning. PCI-9111DG provides 12-bit A/D resolution while PCI-9111HR provides 16-bit A/D resolution. The PCI-9111 series also feature 1-CH 12-bit analog output, 16-CH TTL digital inputs and 16-CH TTL digital outputs. ADLINK PCI-9111 series deliver cost-effective and reliable data acquisition capabilities, and is ideal for a broad variety of applications.

Features:

• Supports a 32-bit 5 V PCI bus
• 12-bit A/D resolution (PCI-9111DG)
• 16-bit A/D resolution (PCI-9111HR)
• 16-CH single-ended analog inputs
• Up to 100 kS/s sampling rate
• On-board 1 k-sample A/D FIFO
• Programmable gains of x1, x2, x4, x8, x16
• Bipolar analog input ranges
