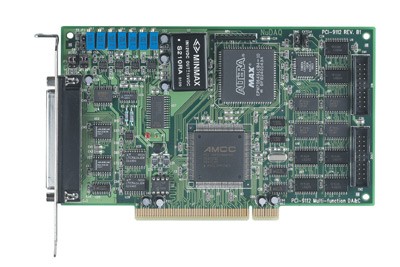

PCI-9112, LPCI-9112
16-CH 12-Bit 110 kS/s Multi-Function DAQ Card/Low - Profile DAQ Card

Features:

  • Supports a 32-bit 5 V PCI bus
  • 12-bit A/D and sampling rate up to 110kS/s
  • 16-CH single-ended or 8-CH differential inputs
  • On-board A/D FIFO
  • Bipolar or unipolar analog input ranges
  • 16-CH TTL DI and 16-CH TTL DO
  • 2-CH 12-bit multiplying analog outputs

Ordering Information

PCI-9112, LPCI-9112

 16-CH 12-Bit 110 kS/s Multi-Function DAQ Card/Low - Profile DAQ Card

Associated Software

DAQBench English V2.42

 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Simplified Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Traditional Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
PCIS-OCX V2.41 ActiveX Controls for ADLINK Devices
DAQ-LVIEW PnP 1.25 V1.25,LabVIEW PnP interface for ADLINK Data Acquisition Cards
PCIS-OPC V2.1 OPC 2.1Compliant Servers for ADLINK Hardware Devices
D2K-VEE V1.12 VEE™ Interface
DAQ-MTLB V1.01 V1.01,MATLAB Data Acquisition Toolbox Adapter for ADLINK DAQ Cards
DAQCreator Evaluation V1.0 Smart & Easy-to-Use Data Acquisition System Creator
