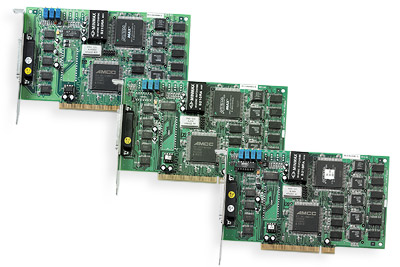

PCI-9118 Series
16-CH 12/16 Bit Up to 333 kS/s Analog Inputs Cards

Introduction

ADLINK PCI-9118/L series are the simplified version of the phase-out PCI-9118 series. PCI-9118/L series provide the fully compatible functionality as PCI-9118 series except the analog output function. The PCI-9118DG/L and PCI-9118HG/L feature 12-bit resolution with sampling rate up to 333kS/s, while the PCI-9118HR/L, on the other hand, features 16-bit resolution with sampling rate up to 100kS/s. The 256-location channel-gain queues on PCI-9118/L series cards allow high-speed data acquisition with different gains on each channel and non-sequential order of automatic analog input scanning capability. The on-board 1k-sample A/D FIFO ensures reliable high-speed data acquisition under Windows operating system. The data can be transferred through bus-mastering DMA with gap-free, continuous high throughput, even for a large amount of data. ADLINK PCI-9118/L series Analog Input cards deliver cost-effective and reliable data acquisition capabilities for a broad variety of applications.

Features:

• Recommend DAQ-2213/2214, 16-CH 16-bit 250kS/s Multi-Function DAQ, for your new applications
• 12-bit A/D resolution (PCI-9118DG/L and PCI-9118HG/L), 16-bit A/D resolution (PCI-9118HR/L)
• Up to 333 kS/s sampling rate (PCI-9118DG/L and PCI-9118HG/L)
• Up to 100 kS/s sampling rate (PCI-9118HR/L)
• 16 single-ended or 8 differential inputs
• 256-configuration channel-gain queue, on-board 1 k-sample A/D FIFO
• Bipolar or Unipolar analog input ranges
• Bus mastering DMA for analog inputs
