DATA ACQUISITION   -  PCI DAQ Cards

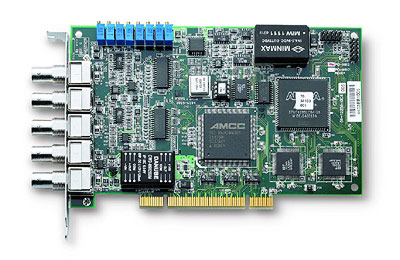

PCI-9812/9812A/9810
4-CH 10/12-Bit 20 MS/s Simultaneous-Sampling Analog Input Cards

Features:

  • Sampling rate up to 20MS/s
  • 4 single-ended simultaneous
  • Input channels with independent 4 A/Ds
  • 12-bit A/D on 9812, 10-bit A/D on 9810
  • On-board 32k-sample FIFO
  • Bipolar signal input range (+/-5V, +/-1V)
  • Analog and digital trigger
  • Programmable sampling rate

Ordering Information

PCI-9812/9812A/9810

 4-CH 10/12-Bit 20 MS/s Simultaneous-Sampling Analog Input Cards

Associated Software

DAQBench English V2.42

 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Simplified Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Traditional Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
PCIS-OCX V2.41 ActiveX Controls for ADLINK Devices
DAQ-LVIEW PnP 1.25 V1.25,LabVIEW PnP interface for ADLINK Data Acquisition Cards
PCIS-OPC V2.1 OPC 2.1Compliant Servers for ADLINK Hardware Devices
D2K-VEE V1.12 VEE™ Interface
DAQ-MTLB V1.01 V1.01,MATLAB Data Acquisition Toolbox Adapter for ADLINK DAQ Cards
DAQCreator Evaluation V1.0 Smart & Easy-to-Use Data Acquisition System Creator
