DATA ACQUISITION - PCI DAQ Cards

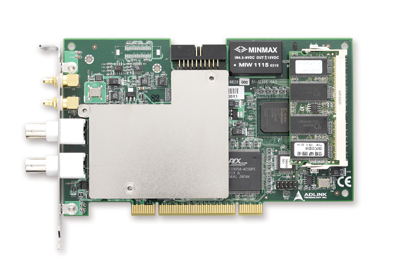

PCI-9820
2-CH Up to 130MS/s 14-Bit Digitizer with SDRAM

Features:

Supports Universal 32-bit 3.3V and 5V PCI bus

14-bit A/D and sampling rate up to 65MS/s with external timebase

Up to 130MS/s sampling rate with external timebase

2-CH single-ended bipolar input On-board SDRAM up to 512MB

Analog and digital trigger

Full auto calibration

Multiple cards synchronization

Ordering Information

cPCI-9820

2-CH Up to 130MS/s 14-Bit Digitizer with SDRAM

Associated Software

DAQ-MTLB V1.01	V1.01,MATLAB Data Acquisition Toolbox Adapter for ADLINK DAQ Cards
WD-OCX V1.0	ActiveX Controls for ADLINK PCI/PXI-9820 High Speed Digitizer

Download Area:

click on arrow to download	Driver	Utility	BIOS	Associated Software	Manual	Datasheet
click on arrow to download
