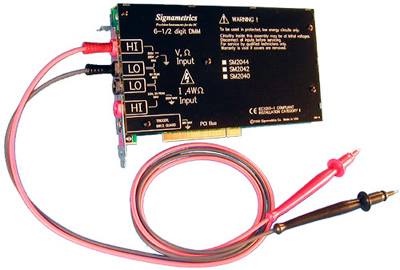

SM2044/2042/2040
6-1/2 Digit PCI Digital Multimeters

Introduction

The SM2040 series is a 3U PCI-based 6-1/2 digit digital multimeter which provides a combination of resolution, accuracy, and speed that surpasses rivals. A 6-1/2 digit display, 0.0045% basic DCV accuracy and 1,000 rps assure accurate, fast, and repeatable measurements. The SM2040 series is designed as a universal, multifunctional DMM. Measurements commonly associated with "high-end" system DMMs are standard features with the SM2040 family, such as 4-wire and 6-wire guarded resistance measurements, inductance and capacitance, leakage and temperature, RMS and peak-to-peak, frequency and timing, sourcing of voltage and current, and much more. The SM2044 is best suited for applications demanding precision sources with simultaneous measurements such as in Parametric testing, while the SM2040 fits the bill where basic DMM functions are required, such as telecommunication, aerospace, automotive and education fields.

Features:

• Flexible, full-featured auto-ranging DMM
• 6-1/2 digit resolution
• Up to 1,000 readings/second
• DC & AC Volts & Current, 2-Wire, 4-Wire Ohms
• True AC RMS measurements, 10Hz to 100kHz
• Measure 1µV to 330V
• Capacitance, Inductance, Leakage, 6-Wire Guarded Resistance, Temperature measurements (SM2042/2044)
• Self-Calibration
