DATA ACQUISITION   -  PCI DIO Cards

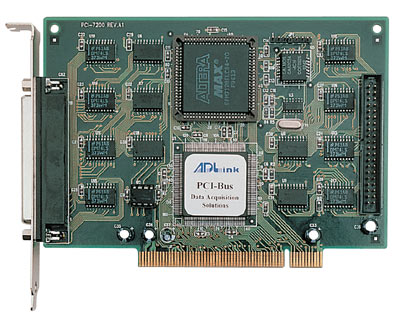

PCI-7200, LPCI-7200S
12MB/s High Speed 32-CH DI & 32-CH DO Card/Low Profile PCI Card

Features:

  • Support a 32-bit 5 V PCI bus
  • 32-CH DI and 32-CH DO
  • Data transfer rate up to 12Mbytes/s
  • On-board internal timer pacer for clocked DIO
  • ACK and REQ signals for handshaking data transfer
  • Bus-mastering DMA data transfer
    •

Ordering Information

PCI-7200, LPCI-7200S

 12MB/s High Speed 32-CH DI & 32-CH DO Card/Low Profile PCI Card

Associated Software

DAQBench English V2.42

 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Simplified Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Traditional Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
PCIS-OCX V2.41 ActiveX Controls for ADLINK Devices
DAQ-LVIEW PnP 1.25 V1.25,LabVIEW PnP interface for ADLINK Data Acquisition Cards
PCIS-OPC V2.1 OPC 2.1Compliant Servers for ADLINK Hardware Devices
D2K-VEE V1.12 VEE™ Interface
DAQ-MTLB V1.01 V1.01,MATLAB Data Acquisition Toolbox Adapter for ADLINK DAQ Cards
DAQCreator Evaluation V1.0 Smart & Easy-to-Use Data Acquisition System Creator


Download Area:


click on arrow
 to download

 Driver Utility BIOS Associated Software Manual Datasheet
