DATA ACQUISITION   -  PCI DIO Cards

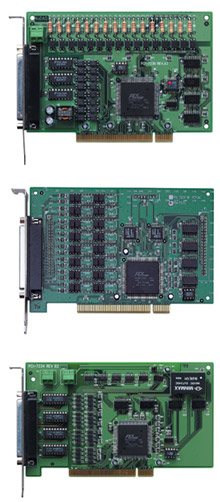

PCI-7230/7233/7234, LPCI-7230
32-CH Isolated DIO Cards/Low-Profile PCI Card

Features:

  • Supports a 32-bit 5 V PCI bus
  • 16-CH isolated digital inputs & 16-CH isolated digital outputs (PCI-7230)
  • 32-CH isolated digital inputs (PCI-7233)
  • 32-CH isolated digital outputs (PCI-7234)
  • 5000 VRMS optical isolation (PCI-7230 & PCI-7233)
  • 2500 VRMS optical isolation (PCI-7233H)
  • Sink current up to 500mA on each isolated output



Ordering Information

PCI-7230/7233/7234, LPCI-7230

 32-CH Isolated DIO Cards/Low-Profile PCI Card

Associated Software

DAQBench English V2.42

 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Simplified Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Traditional Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
PCIS-OCX V2.41 ActiveX Controls for ADLINK Devices
DAQ-LVIEW PnP 1.25 V1.25,LabVIEW PnP interface for ADLINK Data Acquisition Cards
PCIS-OPC V2.1 OPC 2.1Compliant Servers for ADLINK Hardware Devices
D2K-VEE V3.21 VEE™ Interface
DAQ-MTLB V1.01 V1.01,MATLAB Data Acquisition Toolbox Adapter for ADLINK DAQ Cards
