DATA ACQUISITION   -  PCI DIO Cards

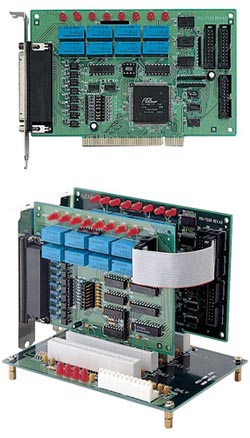

PCI-7250/7251, LPCI-7250
8-CH Relay Outputs & 8-CH Isolated DI Cards /Low Profile PCI Card

Features:

  • Supports a 32-bit 5 V PCI bus
  • 8-CH relay outputs on PCI-7250
  • 8-CH isolated DI
  • On-board LED indicators for relay status
  • On-board relay driving circuits
  • Relay output stats read back
  • On-board low-pass filtering for DI
  • PCI-7250 extendable up to 32-CH relay outputs & 32-CH DI with three PCI-7251
    •



Ordering Information

PCI-7250/7251, LPCI-7250

 8-CH Relay Outputs & 8-CH Isolated DI Cards /Low Profile PCI Card

Associated Software

DAQBench English V2.42

 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Simplified Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Traditional Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
PCIS-OCX V2.41 ActiveX Controls for ADLINK Devices
DAQ-LVIEW PnP 1.25 V1.25,LabVIEW PnP interface for ADLINK Data Acquisition Cards
PCIS-OPC V2.1 OPC 2.1Compliant Servers for ADLINK Hardware Devices
D2K-VEE V3.21 VEE™ Interface
DAQ-MTLB V1.01 V1.01,MATLAB Data Acquisition Toolbox Adapter for ADLINK DAQ Cards
