DATA ACQUISITION   -  PCI DIO Cards

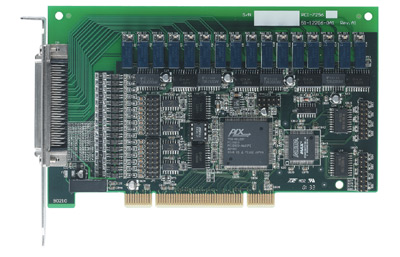

PCI-7256
16-CH Latching Relay Outputs & 16-CH Isolated DI Card

Features:

  • Supports a 32-bit 3.3 V or 5 V PCI bus
  • 16-CH latching SPDT relay outputs
  • Power saving on relay actuation
  • Output status unchanged when power-off
  • On-board LED indicators for relay status
  • 16-CH isolated DI
  • Change-of-status (COS) interrupt
  • Board ID
    •

Ordering Information

PCI-7256

 16-CH Latching Relay Outputs & 16-CH Isolated DI Card

Associated Software

DAQBench English V2.42

 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Simplified Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Traditional Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
PCIS-OCX V2.41 ActiveX Controls for ADLINK Devices
DAQ-LVIEW PnP 1.25 V1.25,LabVIEW PnP interface for ADLINK Data Acquisition Cards
PCIS-OPC V2.1 OPC 2.1Compliant Servers for ADLINK Hardware Devices
D2K-VEE V3.21 VEE™ Interface
DAQ-MTLB V1.01 V1.01,MATLAB Data Acquisition Toolbox Adapter for ADLINK DAQ Cards


Download Area:


click on arrow
 to download

 Driver Utility BIOS Associated Software Manual Datasheet
