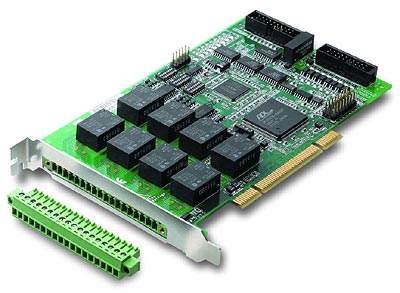

PCI-7260
8-CH High-Power Relay Outputs & 8-CH Isolated Digital Inputs Card

Introduction

PCI-7260 is a PCI-bus, high-power relay output card for industrial automation and machine control. Each of all eight channels is capable to switch 5A current at 250VAC or 5A current at 30VDC. Its pluggable front-panel connector gives consideration to both carrying high current and easy wiring. The PCI-7260 also provides eight isolated digital input channels with debouncing circuit. Furthermore, PCI-7260 supports advanced features to make it feasible for industrial applications. The emergency shutdown input on the front panel lets users get back to a safety state set by a DIP switch regardless the system condition. The initial output status when powering on can be also set by a DIP switch. A built-in watchdog timer guarantees you that all the relays go back to the safety state when your compute halts.

Features:

• 8-CH high power relay outputs (5A @ 250VAC or 30VDC)
• 8-CH isolated digital inputs with AC-filter
• 1-CH emergency shutdown input
• Pluggable connector for high current input
• Supports universal 32-bit 3.3V and 5V PCI bus
• Initial state and safety state setting by DIP switches
• Built-in watchdog timer
