DATA ACQUISITION   -  PCI DIO Cards

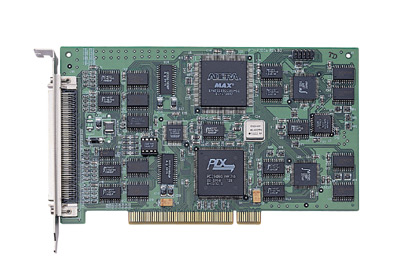

PCI-7300A
80 MB/s High Speed 32-CH Digital I/O Card

Features:

  • Supports a 32-bit 5V PCI bus
  • Multiple I/O port configurations: 16-CH DI & 16-CH DO, 32-CH DI or 32-CH DO
  • Data transfer rate up to 80Mbytes/s
  • Bus-mastering DMA with scatter-gather technology
  • On-board internal timer pacer for clocked DIO
  • On-board 32k words FIFO
  • ACK and REQ signals for handshaking data transfer
    •

Ordering Information

PCI-7300A

 80 MB/s High Speed 32-CH Digital I/O Card

Associated Software

DAQBench English V2.42

 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Simplified Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Traditional Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
PCIS-OCX V2.41 ActiveX Controls for ADLINK Devices
DAQ-LVIEW PnP 1.25 V1.25,LabVIEW PnP interface for ADLINK Data Acquisition Cards
PCIS-OPC V2.1 OPC 2.1Compliant Servers for ADLINK Hardware Devices
D2K-VEE V1.12 VEE™ Interface
DAQ-MTLB V1.01 V1.01,MATLAB Data Acquisition Toolbox Adapter for ADLINK DAQ Cards
DAQCreator Evaluation V1.0 Smart & Easy-to-Use Data Acquisition System Creator


Download Area:


click on arrow
 to download

 Driver Utility BIOS Associated Software Manual Datasheet
