DATA ACQUISITION  -  PXI Based Instruments

PXI-2000 Series
4-CH 14/16-Bit Up to 2 MS/s Simultaneous-Sampling Multi-Function PXI Modules

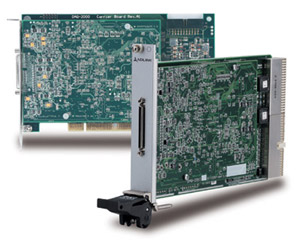

ADLINK PXI-2010, PXI-2005,PXI-2006 and PXI-2016 are simultaneous-sampling multifunction PXI modules to meet a wide range of application requirements. These products can simultaneously sample 4 AI channels with differential input configurations to achieve maximum noise elimination. They also provide 2-CH 12-bit analog outputs with waveform generation capabilities, which can be performed together with analog input functions. If more analog input or output channels are required, multiple modules can be synchronized through the PXI trigger bus. This makes the PXI-2000 series ideal for stimulus/response tests. The PXI-2000 series also feature analog and digital triggering, 24-CH programmable digital I/O lines, and 2- CH 16-bit general-purpose timer/counters. The auto-calibration feature adjusts the gain and offset to a specified accuracy, eliminating the need to calibrate the modules by adjusting trimpots.

Features:

• PXI specifications Rev. 2.0 compliant
• 3U Eurocard form factor, CompactPCI compliant (PICMG 2.0 R3.0)
• 4-CH differential analog inputs
• Up to 2 MS/s simultaneous-sampling rate (PXI-2010)
• 14-bit A/D resolution (PXI-2010)
• 16-bit A/D resolution (PXI-2005,PXI-2006 & PXI-2016)
• On-board 8k-sample A/D FIFO (PXI-2010)
• Bipolar or unipolar analog input ranges
